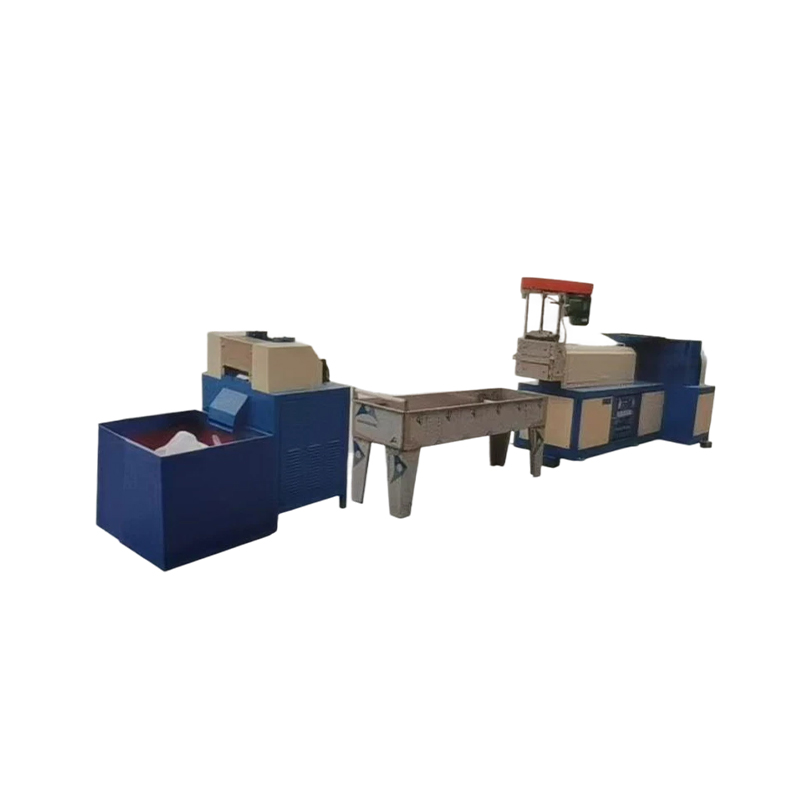

Single Screw Plastic Recycling Machine

120 type 150 type etc.
Application: waste plasticrecycling and then be used again.

Consult

Features Technical Indicators Overall Dimension

(1)This machine employed single screw,included extrusion unit,motor auto screen change unit,cooling and cutting unit.

(2)Feed way can be automatic one or by manual.

(3)The suitable material is LDPE,LLDPE,HDPE,PP, EVA,ABS,EPE,EPS,HIPS and etc.

Main Technical Parameters
Model	HWHφ90	HWHΦ125	HWHφ140	HWHΦ150
Material of screw &barrel	38CrMoAIA Nitriding treatment +nitriding
Dia of screw(mm)	φ90	φ125	φ140	Φ150
Suitable to materials	LDPE、LLDPE、HDPE.PP、ABS、EVA、EPE、EPS
Filter exchange type	Motor driving auto type
Weight (kg)	2200	2500	2800	3200
Output(kg/h)	50-100	80-130	150-200	180-250
Overall Dimension(mm)	5500x2000x1400	6000x2000x1500	6500x2000x1600	7000x2200x1700
