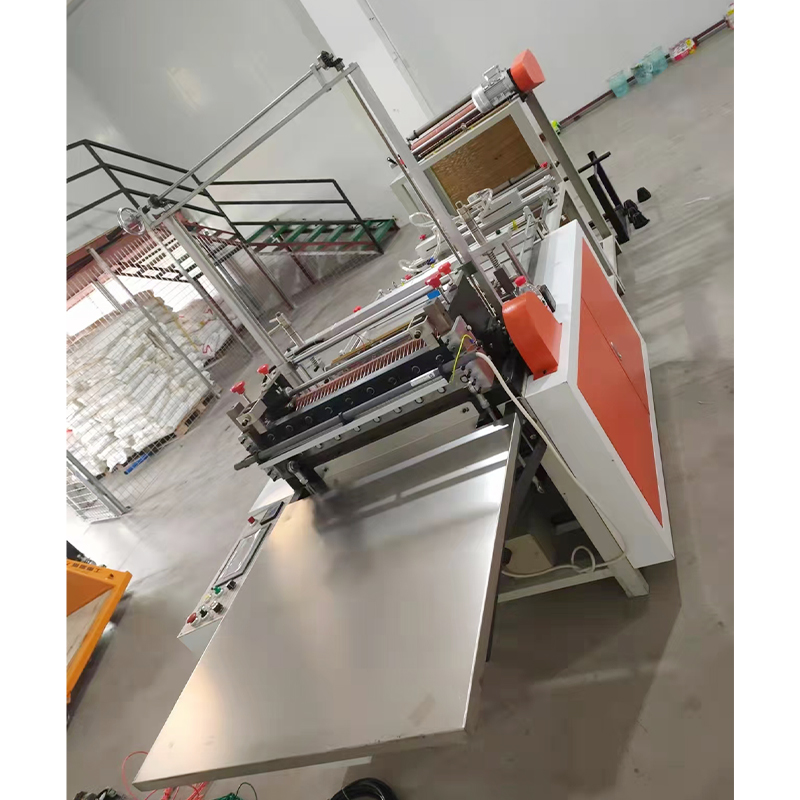

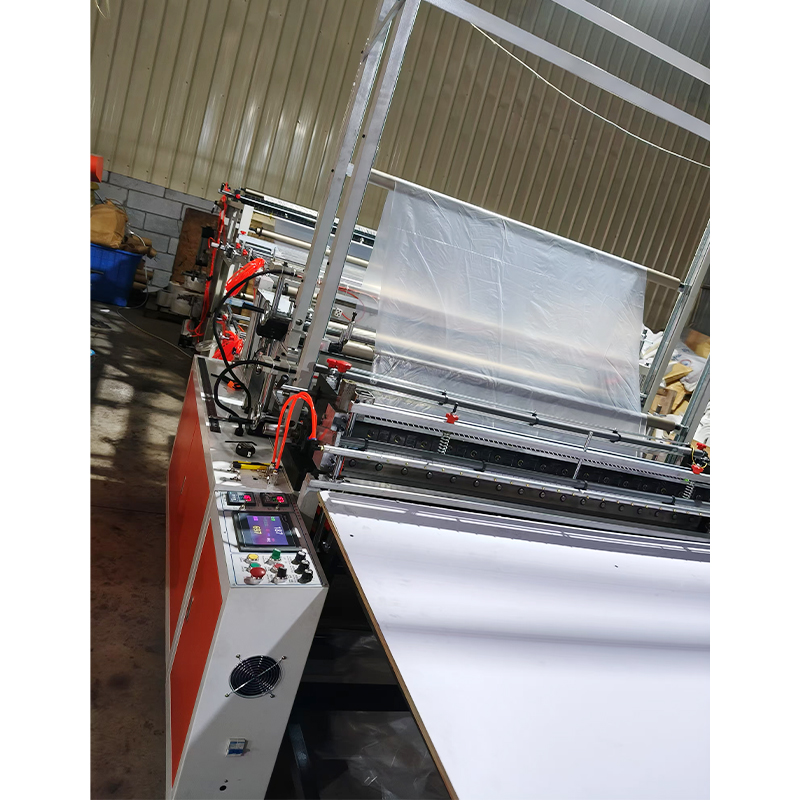

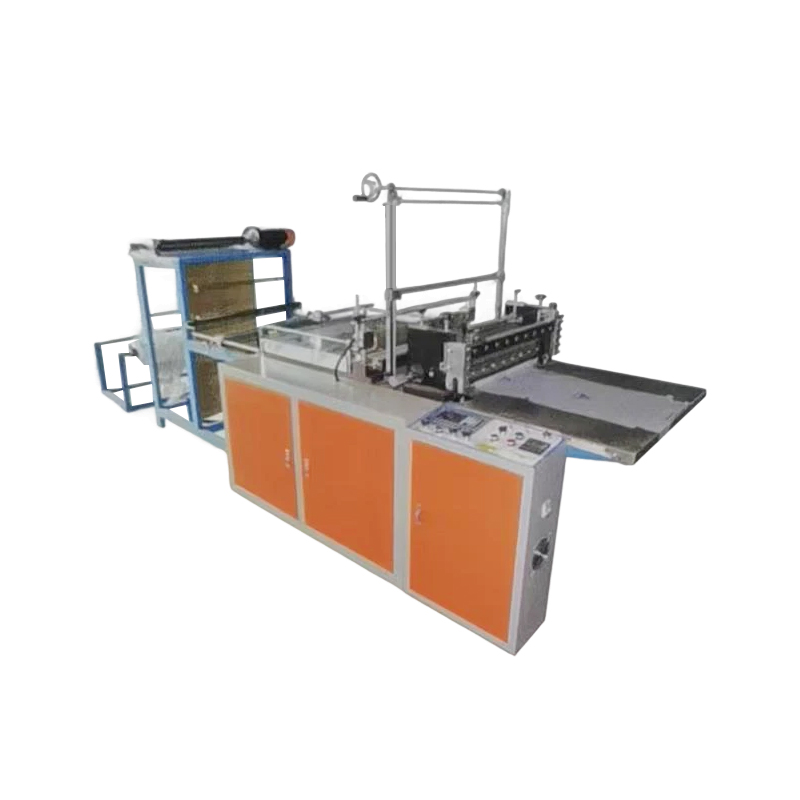

Bottom Sealing Bag Machine

26 inches 30 inches 40 inches etc.
Application:
This machine adopts heat sealing and cold cutting technology to make flat plastic bags. With other auxiliary devices, it can make agricultural hanging bags, hand bags, and roll bags.

Consult

Features Technical Indicators Overall Dimension

(1)Hot sealing and cooling cutting technical
(2)Servo driving systemand V.F driver for speed regulation
(3)There are singie line and double line machine to choose

Main Technical Parameters
Model	HWBP-20	HWBP-26°	HWBP-30°	HWBP-40"	HWBP-50°	HWBP-60
Max.bag width(mm)	450	620	720	950	1200	1450
Max length(mm)	2000	2000	2000	2000	2000	2000
Fim thickness （mm)	0.008-0.2	0.008-0.2	0.008-0.2	0.008-0.2	0.008-0.2	0.008-0.2
Length error（mm）	<±0.5	<±0.5	<±0.5	<±0.5	<±0.5	<±0.5
Max output(Pcs/min）	150	150	150	150	150	150
Power source	220V	220V	220V	220V	220V	220V
Machine weight(kg）	550	650	750	960	1080	1200
Dimension(L ·W"H)(mm)	3200x1200x2200	3400x1300x2200	3600x1400x2200	4200x1600x2200	4600×1800×2200	5000x2000x2200
