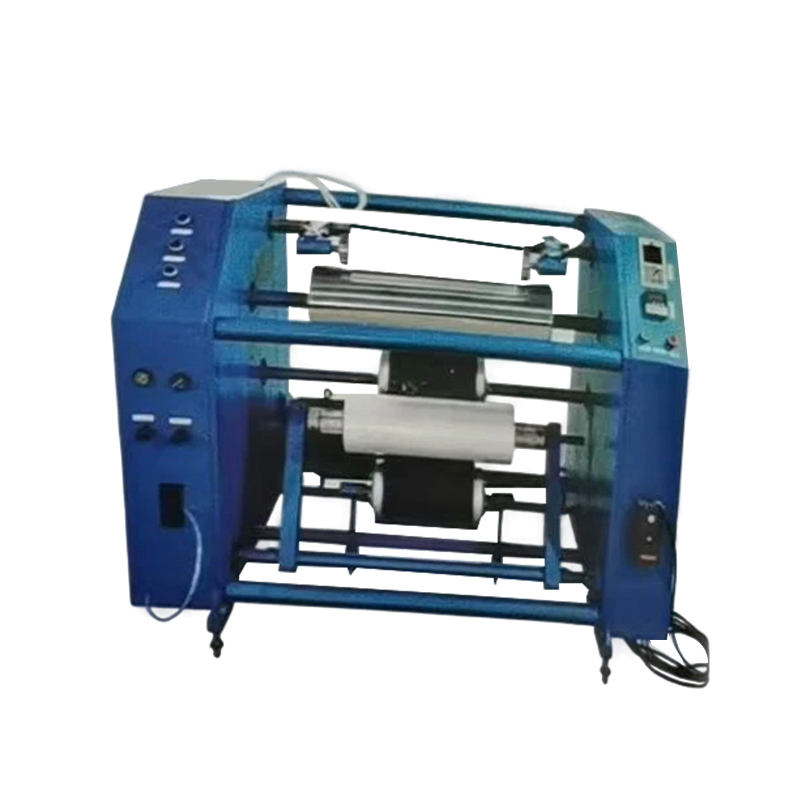

Stretch Film Slitting &Rewinding Machine
500 type
Application:
It is used in sitting & rewinding stretch film and cling film,which make big roll film into small rollfilm.
(1)Both unwinder and rewinder employed pneumatic equipment control.
(2)Auto count,auto stop when going to the preestablish length.
Main Technical Parameters |
Model | HWF-500 |
Width of products(mm) | 500 |
Motor power(kw) | 1.5 |
Machinery speed(m/min) | 400 |
Cutting-off mode | Manual |
Film diameter(max)(mm) | φ400 |
Width of parent roll(mm) | 500 |
Paper core specification | 3"、2"、1" |
Dimension(mm) | 1400x1000x1100 |
Weight(kg) | 600 |
